MOREK → MOREK device connector blocks → MOREK MPIN device connectors

MPIN3 pin terminal, 3x16mm², 80A

MAD3016E21; Pin terminal, 3*16mm2, 63A

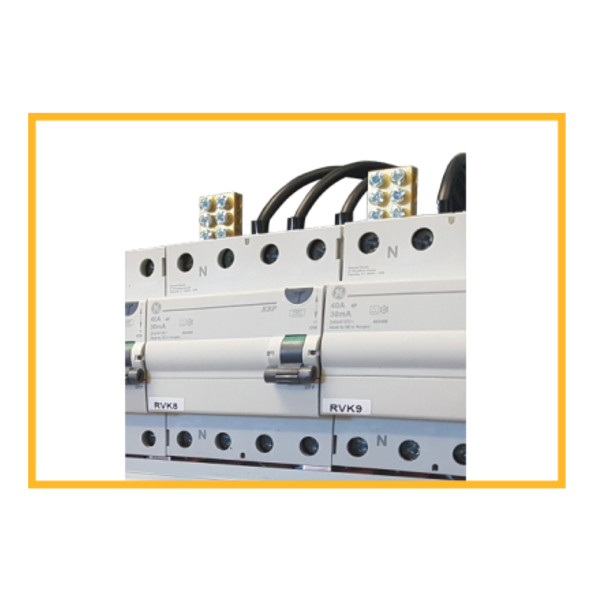

MPIN3 pin terminal, 3x16mm², 80A enlarge picture
Manufacturers ID
Packing unit
Net unit price (HUF)
Net unit price (HUF)
(in the case of a quantity different from the packaging unit or its integer multiple)
Quantity discount
Gross package price (HUF)
Gross unit price (HUF)
MAD3016E21
40 piece(s)
379 Ft/piece(s) when purchasing an unopened package
398 Ft/piece(s) in the case of a quantity different from the packaging unit or its integer multiple
-
481 Ft/piece(s)
505 Ft/piece(s)

Short product information

SKU MAD3016E21
EAN 4744397018533
Color Natural
Wire material Cu
Cross-section min. (mm²) 1,5
Cross-section max. (mm²) 16
Input wire min. (mm²) 1,5
Input wire max. (mm²) 16
Number of connections 3
Nominal current (A) 80
Nominal voltage (V) 690
Material Brass
Mounting method Device
Item width (mm) 8
Item length (mm) 35
Item height (mm) 16
Item weight (g) 10
Tightening torque (Nm) 2,5 Nm
IP rating IP00
CN8 code 85369010
Package quantity (pcs) 200
